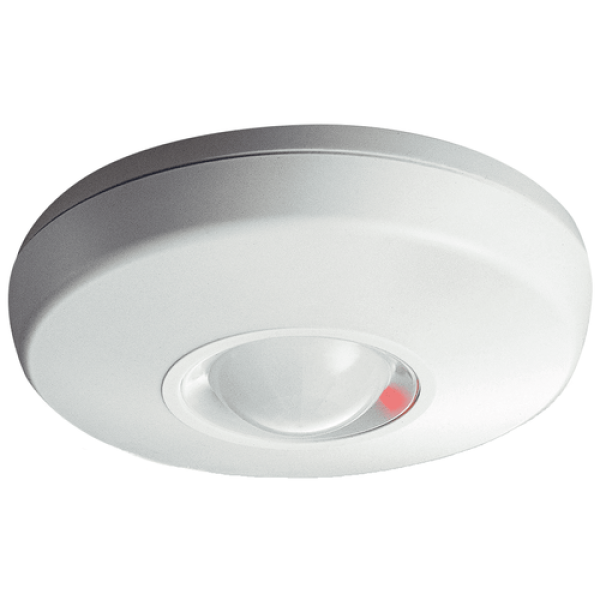

RE659 360 Motion Sensor

360 PIR Motion Sensor alarms when motion is sensed. It is a commercial battery-powered ceiling mount sensor with a 360 degree detection range.

Features

  • 360° detection range with 62 distinct detection zones
  • Range up to 40 feet in diameter
  • Selectable pulse count 2 or 4
  • Designed for commercial applications
  • 5 year warranty

Specifications

Physical

Housing Dimensions 4.72 x 1.57 inches (40 x 120 mm)
Weight with Battery 4.2oz (120g)
Mounting Fasteners (3) #8 screws, (1) square nut, (1) #4 screw (All provided)

Environmental

Operating Temperature 32°F to 120°F (0°C to 49°C)
Maximum Humidity 85% non-condensing relative humidity

Sensor Specifications

Frequencies 433.92 MHz
Replacement Battery One Panasonic CR123A Lithium Battery
Nominal Battery Life 3 years (assuming 720 trips/day), 7 years (assuming 240 trips/day)
Battery Voltage 3.0 VDC (Nominal), 2.7 VDC (Low)
Current Draw 21 mA (Maximum), 4.7 uA (Standby), 30 mA (Max in walk test)
Detection Range Up to 40 Feet (12 m)
Detectable Speed 1 to 5 feet per second (0.3 to 1.5 meters per second)
Transmitted Indications Motion, Tamper (Cover/Wall), Low Battery, Supervision

Certifications

RE659 UL639, ULC-S306-03, ETL, FCC, IC
