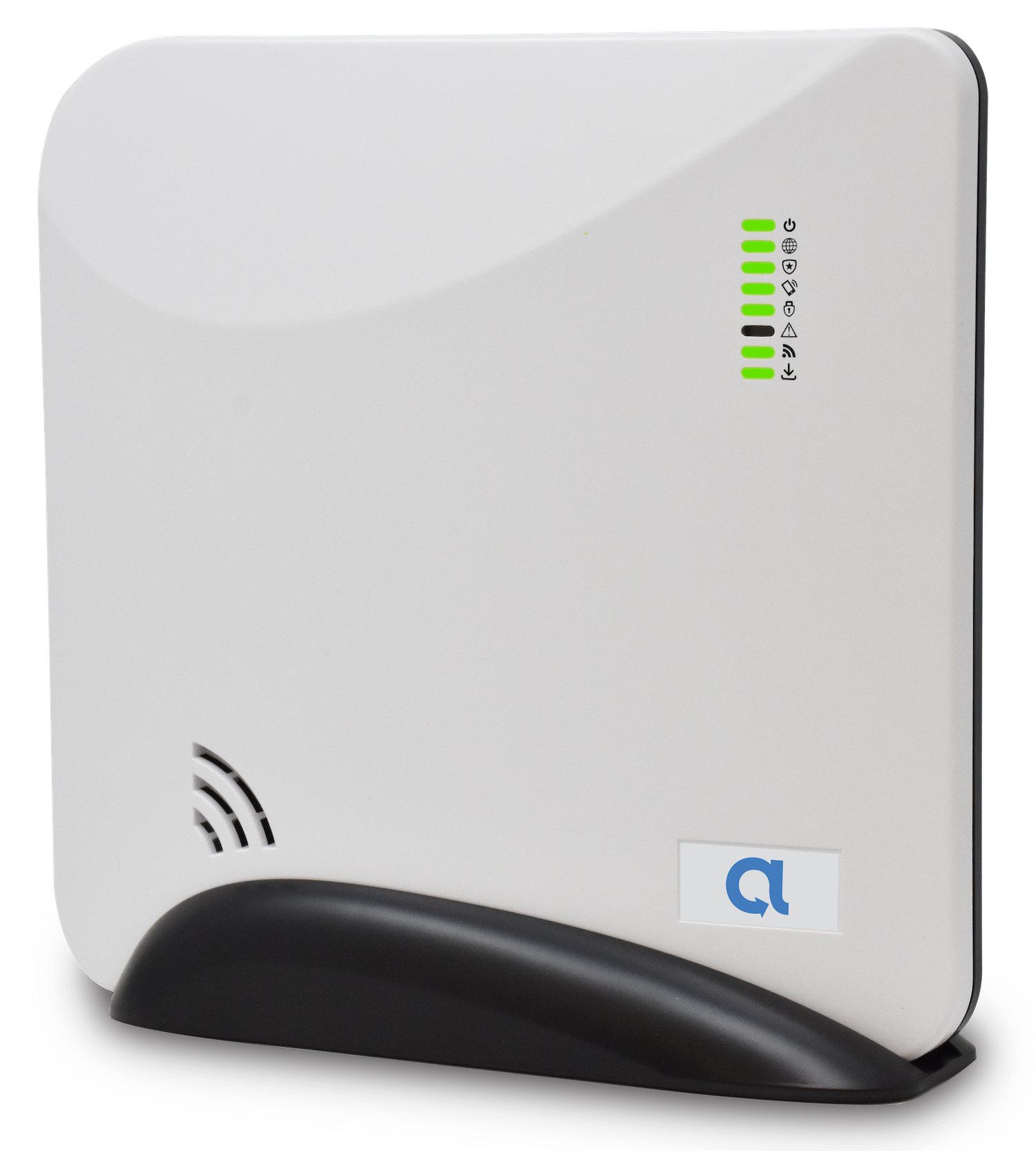

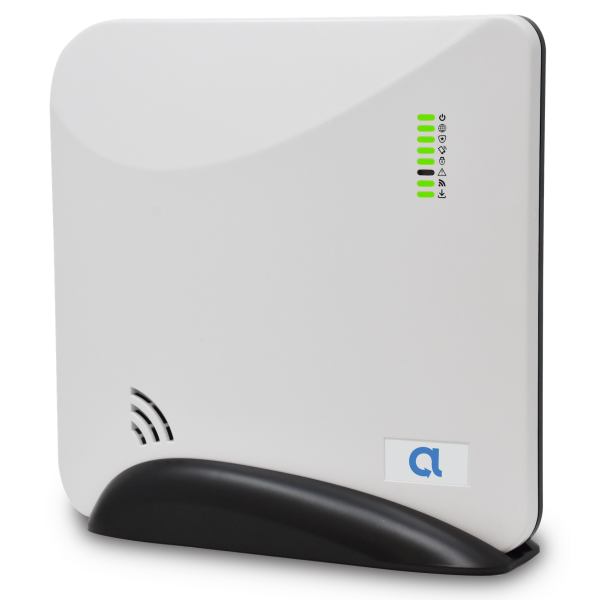

RE 6100 Series Connect+ Security and Automation Platform

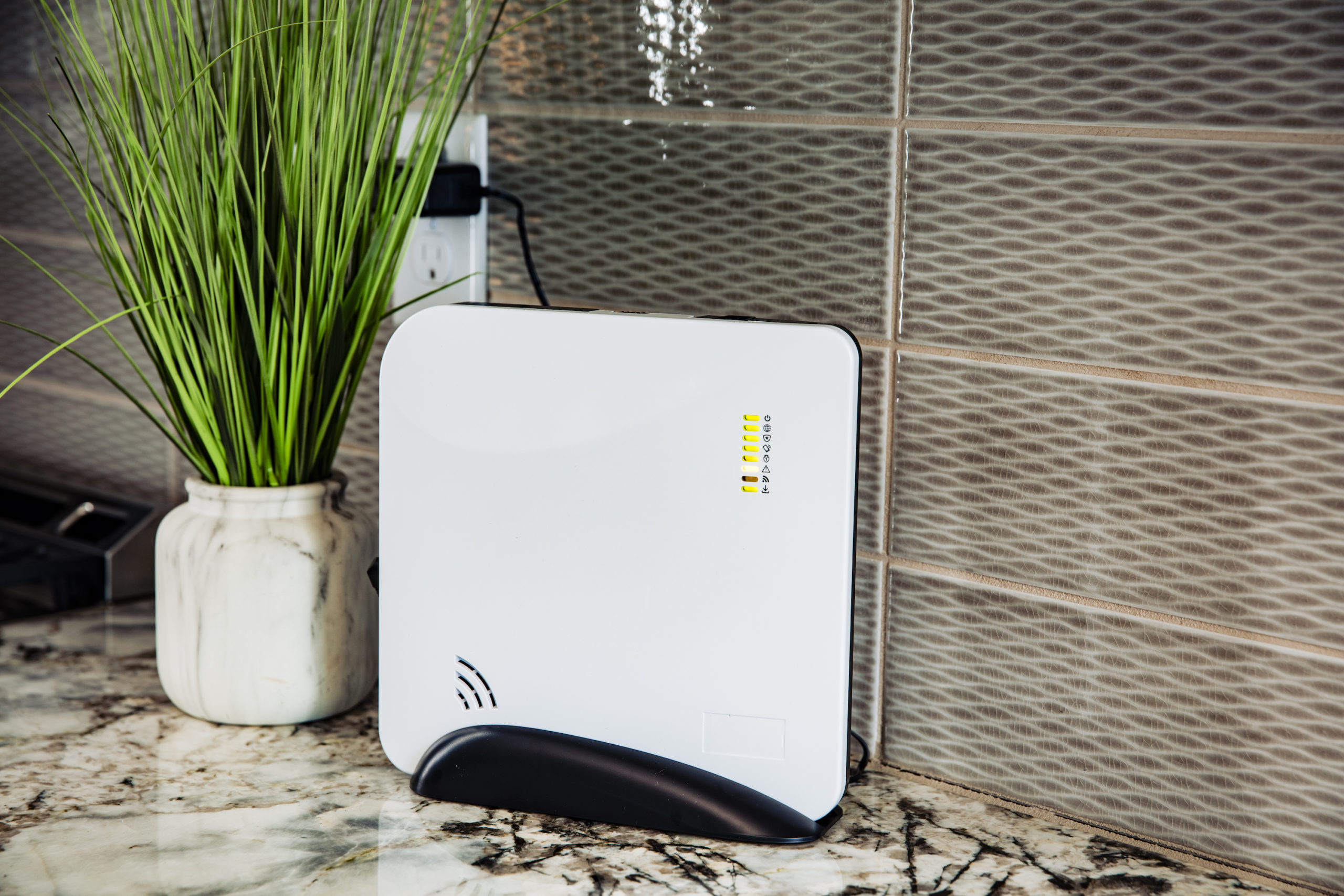

Connect+ is a professional wireless security panel designed to deliver home security and automation services. A secured and supervised Ethernet connection comes standard. Optional Cellular and Wi-Fi cards provide primary or backup communication channels. Its long-range encrypted wireless receiver easily provides whole home coverage. Wireless arming stations and mobile devices uncouple Connect+ from the entry wall and allow it to be installed at a location convenient for Internet and power connections.

Features

  • Cellular, Wi-Fi, or Ethernet communication channels
  • Control from a user’s mobile device
  • Industry-leading wireless range
  • Up to 50 users
  • Up to 96 zones
  • 2-way voice communication with RE6130
  • 5 year warranty

Specifications

Physical

Housing Dimensions 8.9 x 8.9 x 1.5 inches (22.6 x 22.6 x 3.8 cm)
Housing Base Dimensions 8.2 x 1.3 x 2.7 inches (20.8 x 3.3 x 6.7 cm)
Weight with Battery 26.8 ounces (760 grams)
Mounting Fastener #6 or #8 screws (not provided)

Environmental

Operating Temperature 32 to 120 °F (0 to 49 °C)
Storage Temperature -4 to 86 °F (-20 to 30 °C)
Maximum Humidity 85% non-condensing relative humidity

Panel Specifications

Radio Frequencies 433.92MHz, 2.4GHz
Power Supply Part Number RE012-6 (US), RE012-7 (AUS), RE012-8 (CE)
  Input 100-240VAC, 50/60 Hz, 0.5A
  Output 12VDC, 1A
Battery Part Number RE029
  Backup 24 hours minimum (4 hours minimum for RE6130)
  Specifications 6VDC, 2.5Ah, NiMH
Battery Charger 25mA (Trickle), 95mA (Fast)
Current Draw (RE6100, RE6110, RE6120) 150mA (Normal), 300mA (Alarm)
Current Draw (RE6130P-XW-X) 250mA (Normal), 400mA (Alarm)
Current Draw (RE6130P-LX-X) 150mA (Normal), 400mA (Alarm)
Tamper Indications Cover opening and Wall removal
Sensors Up to 96 Connect+ Compatible Wireless Security Zones
Interface Devices Up to 8 PINPads (RE652) Up to 8 Keypads (RE656) and/or mobile devices, up to 4 Touchpads
Maximum Number of Users 50

Certifications

RE6100 UL1023, UL985, UL1635, UL1610, ORD-C1023-1974, ULC S304, ULC-S545-M89, ETL, FCC, IC
RE6110 EN 60950-1, EN 300 220, EN 301 489, RCM
RE6120 EN50131-3, EN 60950-1, EN 300 220, EN 301 489, CE
RE6130P-XW-X UL1023, UL1635, ORD-C1023-1974, ETL, FCC, IC
RE6130P-LX-X UL1023, UL985, UL1635, ORD-C1023-1974, ULC-S545-M89, ETL, FCC, IC

Specifications subject to change without notice.
