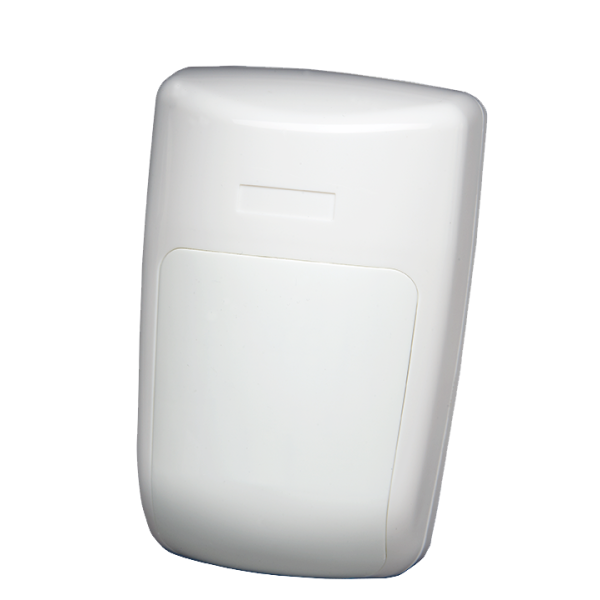

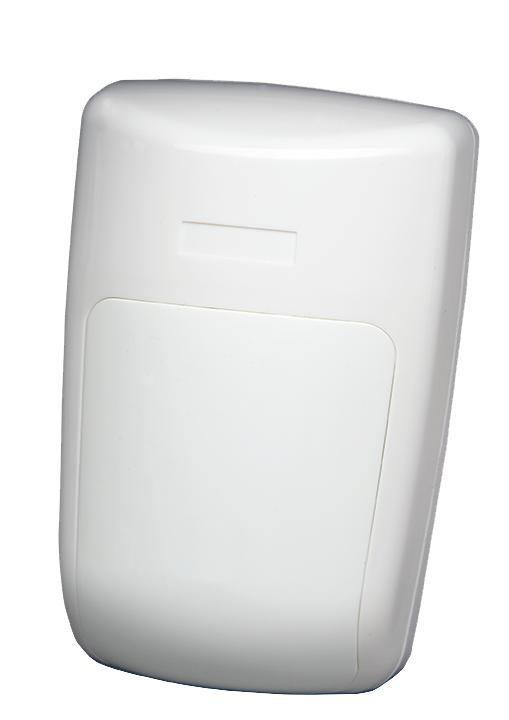

RE610OP Indoor Motion Sensor – Pet Immune

The Indoor Motion Sensor alarms when motion is sensed or when the external contact is opened. It is battery powered and requires no installation tools. A Pyroflexsensor with HighBarsignal processing allows for industry-leading pet immunity and catch performance.

Features

  • Narrow angle detection
  • Detection range adjustability
  • IP 55 rated weatherproof enclosure
  • 5-year warranty

Specifications

Physical

Housing Dimensions 3.50 x 2.40 x 1.70 inches (8.9 x 6.1 x 4.3 cm)
Weight with Battery 3.2 ounces (91 grams
Mounting Fastener 3M VHB (Very High Bond) Tape or Screws (both provided)

Environmental

Operating Temperature 32 to 120 °F (0 to 49 °C)
Maximum Humidity 85% non-condensing relative humidity

Sensor Specifications

Frequency 433.92 MHz
Pet Immunity Two 60-pound dogs or one 85-pound dog
Replacement Battery One Panasonic CR132A
Nominal Battery Life 6 to 8 years
Battery Voltage 3.0 VDC (Nominal), 2.2 VDC (Low)
Current Draw 30 mA (Maximum), 20 uA (Quiescent)

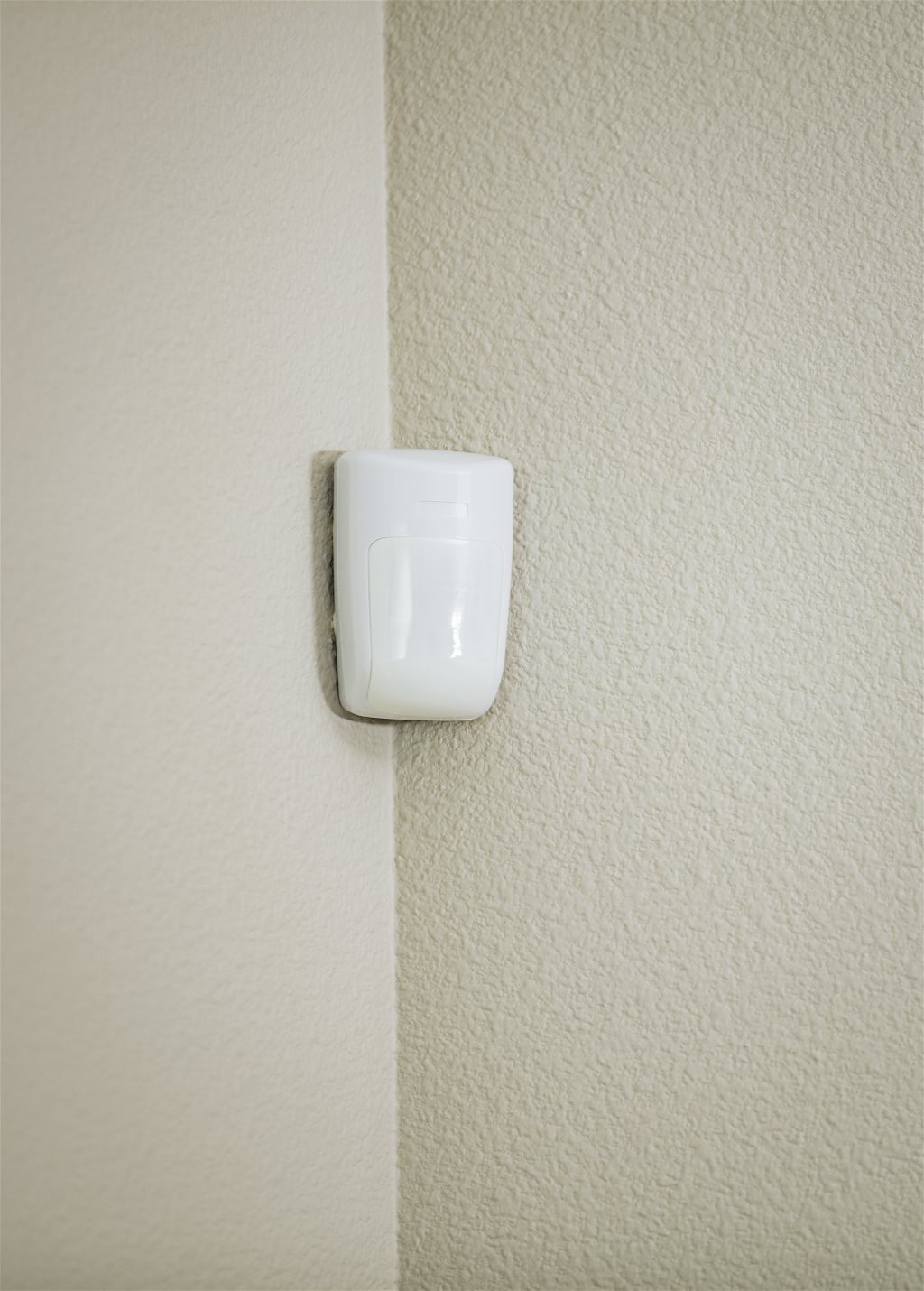

Optimal Mounting Height 7.5 to 9.5 feet (2.3 to 3.0 m)
Transmitted Indications Cover Tamper, Low Battery, Supervision

Certifications

RE622 UL639, ULC-S309-03, ETL, FCC, IC
RE622-CE EN 50131-2-2, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 1, CE Environmental Class 2, RCM

Guides

Installation Guide
