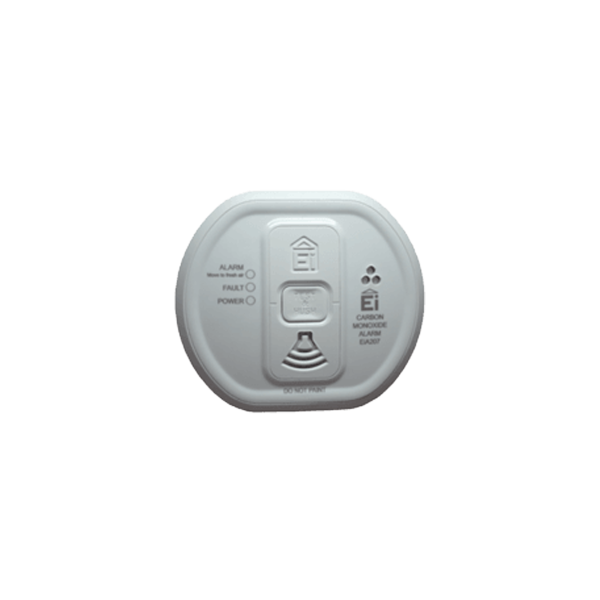

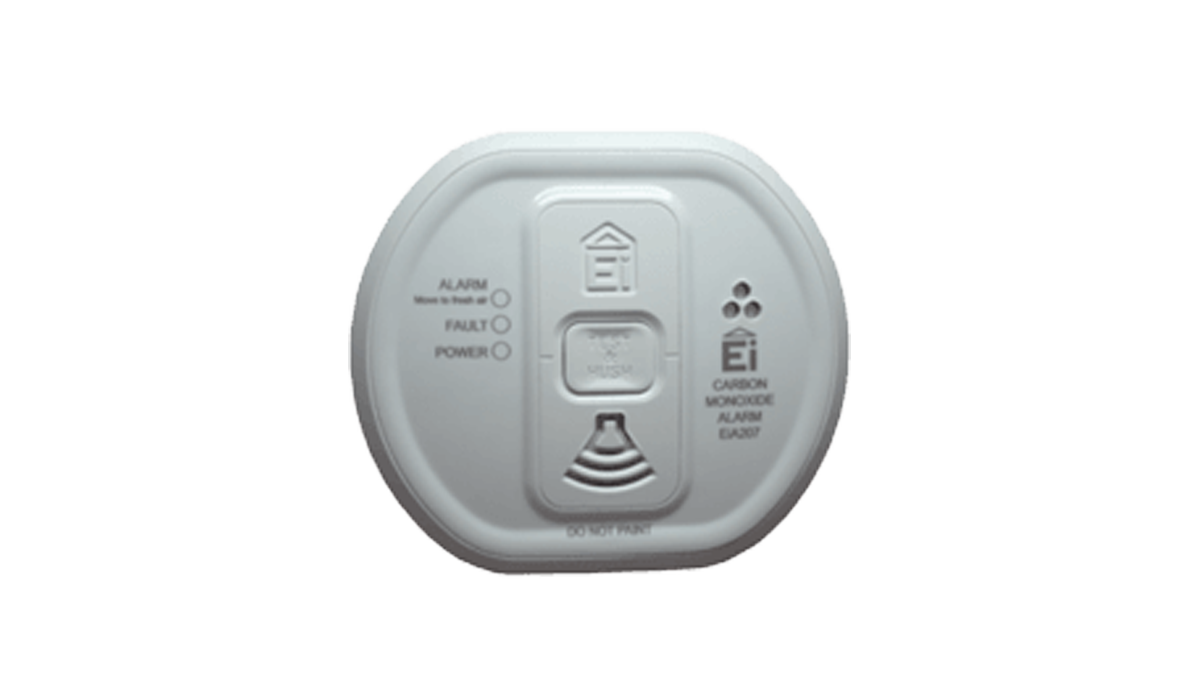

RE615 CO Alarm

The RE615 CO Alarm is a safety device that alarms when dangerous levels of carbon monoxide are detected.

Features

  • UL2034 and CSA 6.19-01 listed
  • Detects carbon monoxide
  • 5-year warranty

Specifications

Housing Dimensions4.7 x 4.1 x 1.6 inches (12.0 x 10.4 x 4.1 cm)
Weight with Batteries6.53 ounces (185 grams)
Mounting Fastener#6 screws and anchors (provided)
Operating Temperature32°F to 104°F (0°C to 40°C)
Maximum Humidity15% to 95% non-condensing relative humidity
Replacement Batteries2 x Alkaline AAA Batteries (Duracell MN2400BK)
Sensor IndicationsLow Battery, Supervision, Removal Tamper, Fault, End of Life
Audible Alarm85 dBA at 10 feet (3m) minimum
Compatible PanelsSimon XTi 600-1054-95R-12 (RE115), Honeywell Lynx Touch L5200 (RE215), 2GIG-GC3-345 (RE215T), DSC PC1832 (RE315), Connect+ RE6100 (RE615)
Frequencies319.50 MHz (RE115)
345.00 MHz (RE215/215T)
433.92 MHz (RE315/RE615)
Certifications/ListingsFCC, IC, UL2034, CSA 6.19-01

Guides

Installation Guide
