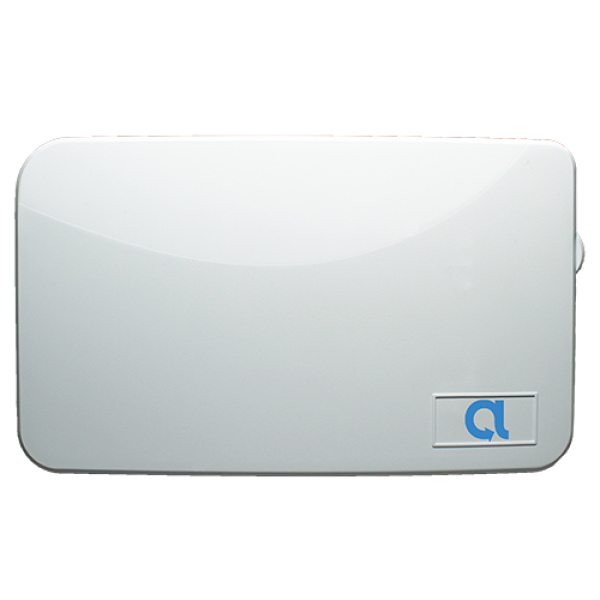

RE621 Touchpad Range Extender

RE621 Touchpad Range Extender extends the wireless range between Touchpads and the panel.

Features

  • Wireless range extension
  • Single button enrollment
  • 5-year warranty

Specifications

Physical

Housing Dimensions

8.5 x 5.0 x 1.3 inches (21.6 x 12.5 x 3.3 cm)

Weight with Battery 10 ounces (284 g)
Mounting Screws #4 or #6 (Not Included)

Environmental

Operating Temperature 32°F to 120°F (0°C to 49°C)
Maximum Humidity  85% non-condensing relative humidity

Power

Power Transformer

Input

100-240VAC 50/60Hz 0.5A

 Output

12VDC 1A

Part Number

REO12-6

Current Draw

15mA (Nominal)

Certification

RE621 FCC, IC
Specifications subject to change without notice.

Guides

Installation Guide
