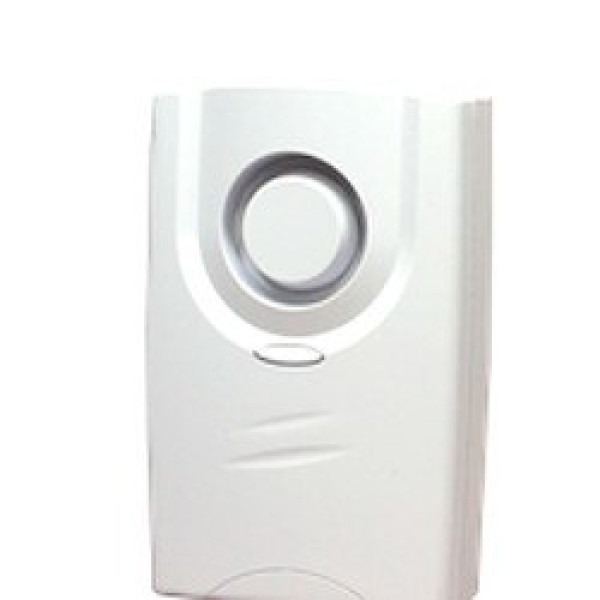

RE626 Wireless Siren Bluetooth

The RE626 Wireless Siren is an auditory warning device that produces high volume warning sounds and low volume notification sounds.

Features

  • Runs on user-replaceable alkaline AAA batteries
  • Secure encrypted wireless communications

Specifications

Physical

Housing Dimensions4.1 x 2.6 x 1.2 inches (10.4 x 6.7 x 3.0 centimeters)
Weight with Batteries4.7 ounces (132 grams)
Mounting Fastener#4 or #6 screws

Environmental

Operating Temperature32°F to 120°F (0°C to 49°C)
Maximum Humidity85% non-condensing relative humidity

Sensor Specifications

Frequency2.4 GHz
Replacement BatteriesThree Panasonic® alkaline AAA
Nominal Battery Life6 Months
Battery Voltage4.5 VDC (Nominal) 3.6 VDC (Low)
Current Draw100 mA (Maximum) 4.0 uA (Quiescent)
Sounder Loudness90 dBA at 10 feet
Sounder Frequency3.2 kHz to 4.0 kHz
Transmitted IndicationsLow Battery, Supervisions

Certifications

RE626FCC, IC
RE626-CEEN60950-1, EN300 220, EN301 489, CE, RCM

Guides

Installation Guide
