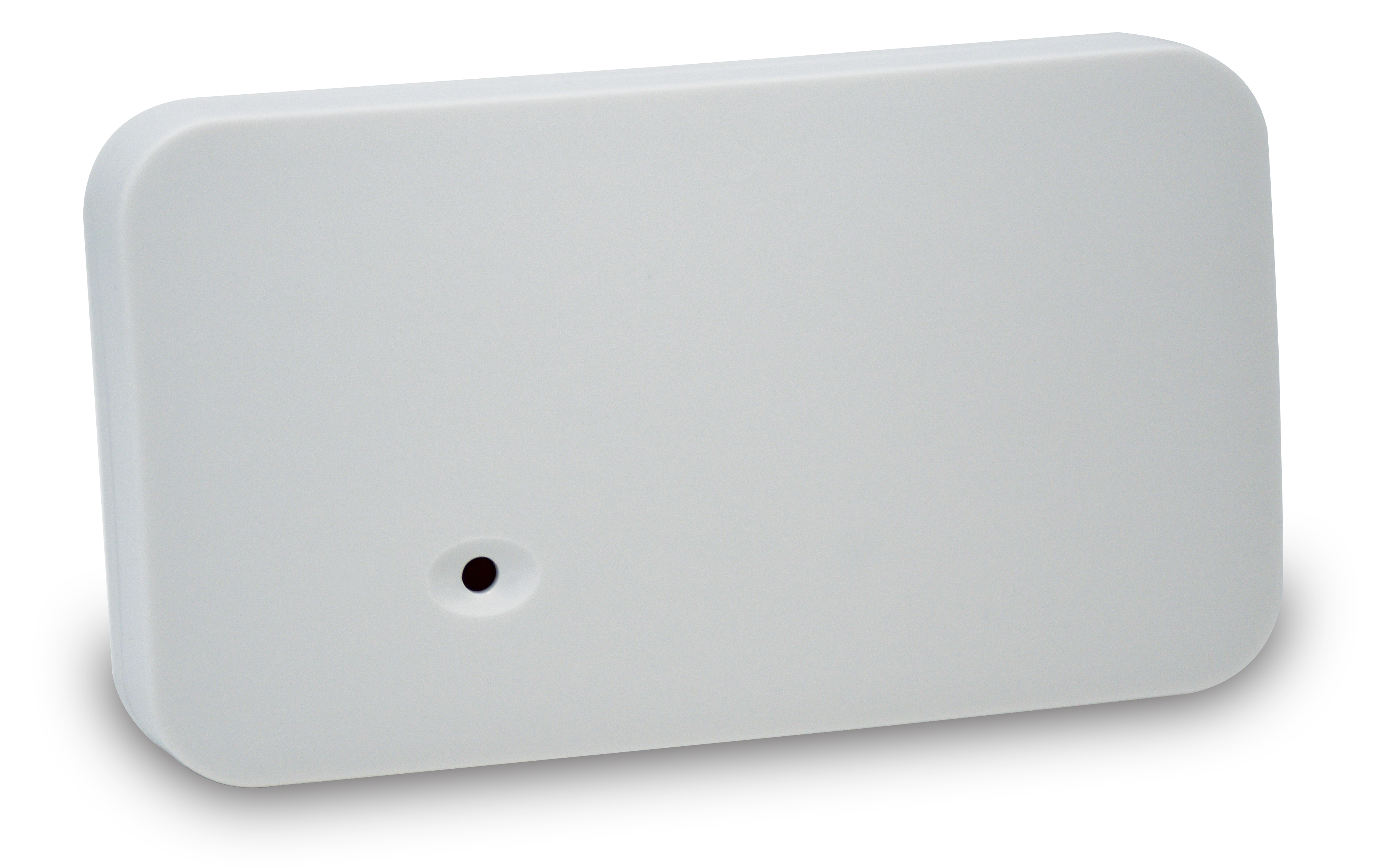

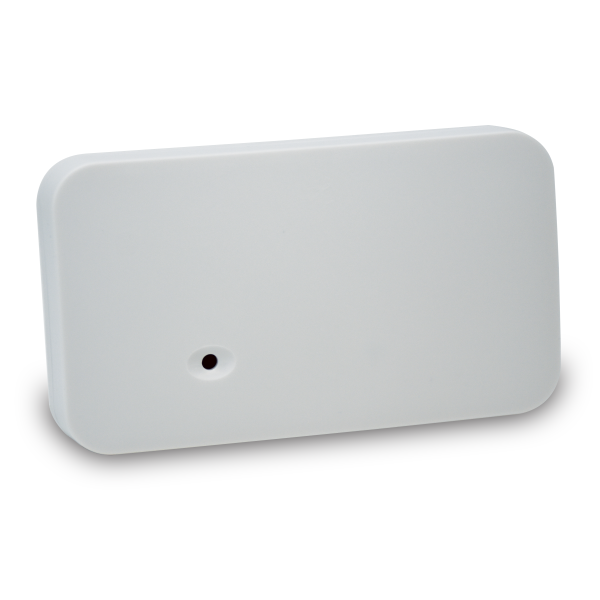

RE629 Glassbreak Sensor

The RE629 Glassbreak is a security sensor that detects the sound of breaking glass and sends alarm signals to the security panel.

Features

  • Variable detection range of up to 20 feet
  • Low battery and tamper indication
  • VHB™ tape included for easy installation

Specifications

Physical

Housing Dimensions4.1 x 2.3 x 1.0 inches (10.6 x 6.0 x 2.6 centimeters)
Weight with Battery2.75 ounces (78 grams)
Mounting Fastener#6 screws, anchors, VHB tape (all provided)

Environmental

Operating Temperature32°F to 120°F (0°C to 49°C)
Maximum Humidity85% non-condensing relative humidity

Sensor Specifications

Frequency433.92 MHz
Replacement BatteryOne Panasonic CR123A
Nominal Battery Life3.5 years
Battery Voltage3.0 VDC (Nominal), 2.2 VDC (Low)
Current Draw30 mA (Maximum), 50 uA (Quiescent)
Transmitted IndicationsLow Battery, Tamper, Supervision, Alarm

Certifications

RE629FCC, IC
