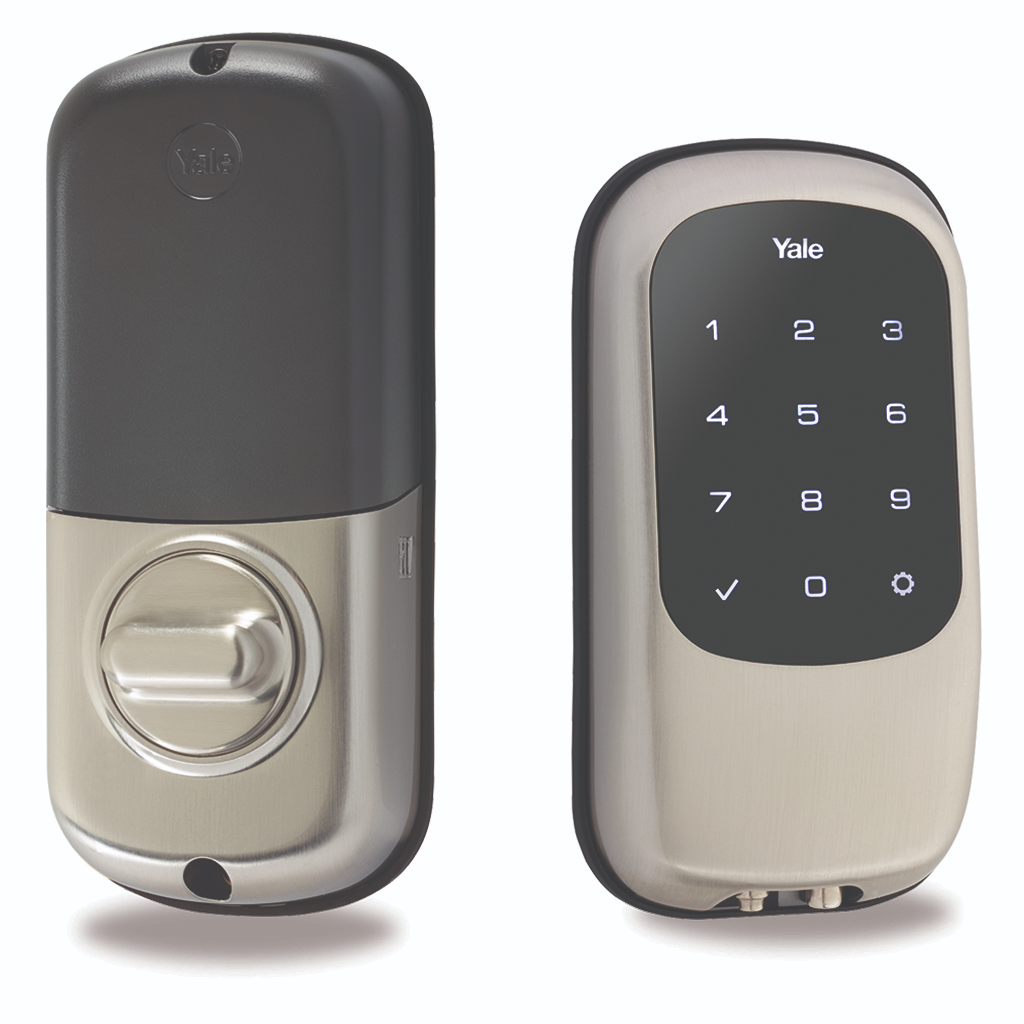

Yale YRD120ZW619 Real Living Z-Wave Touchscreen Deadbolt Lock

The Yale YRD120ZW619  Z-Wave Touchscreen Key Free Deadbolt Lock provides a “clean” appearance due to the Absence of the cylinder, yet means that lock picking or bumping are virtually impossible. In the unlikely event the batteries die – a 9V battery provides enough power to enter the code and gain access to the lock.

  • Simple, elegant, tamper-resistant keypad
  • Illuminated touchscreen for night time access
  • For use on all standard interior and exterior doors
  • Tapered bolt accommodates misaligned doors
  • Z-Wave
  • Sleek aesthetics
  • Operational efficiency
  • Completely eliminate the need to manage keys
  • No need to ever re-key – just set up a NEW access code
  • Increased security

Features

  • Smallest residential keypad to enhance curb appeal
  • Fast Z-Wave® enrollment with the push of a button
  • Universal lock and program symbols for ease-of-use
  • Enhanced interior design to reduce complexity and installation time
  • Motorized tapered deadbolt
  • Fully gasketed installation
  • 4AA batteries included
  • 9V battery backup
  • Illuminated keypad

Specifications

Door Specs:
2 1/8″ Face Bore, 1″ Edge Bore
2 3/8″ or  2 3/4″ Backset

Door Thickness:
T1L   1 3/4″ to  2 1/4″

Product Measurements:

Length
(off door)
Width
(across face)
Height
(vertical)
Exterior 15/16″ 2  3/4″ 5  1/8″
Interior 2  1/8″ 3″ 6  7/8″
