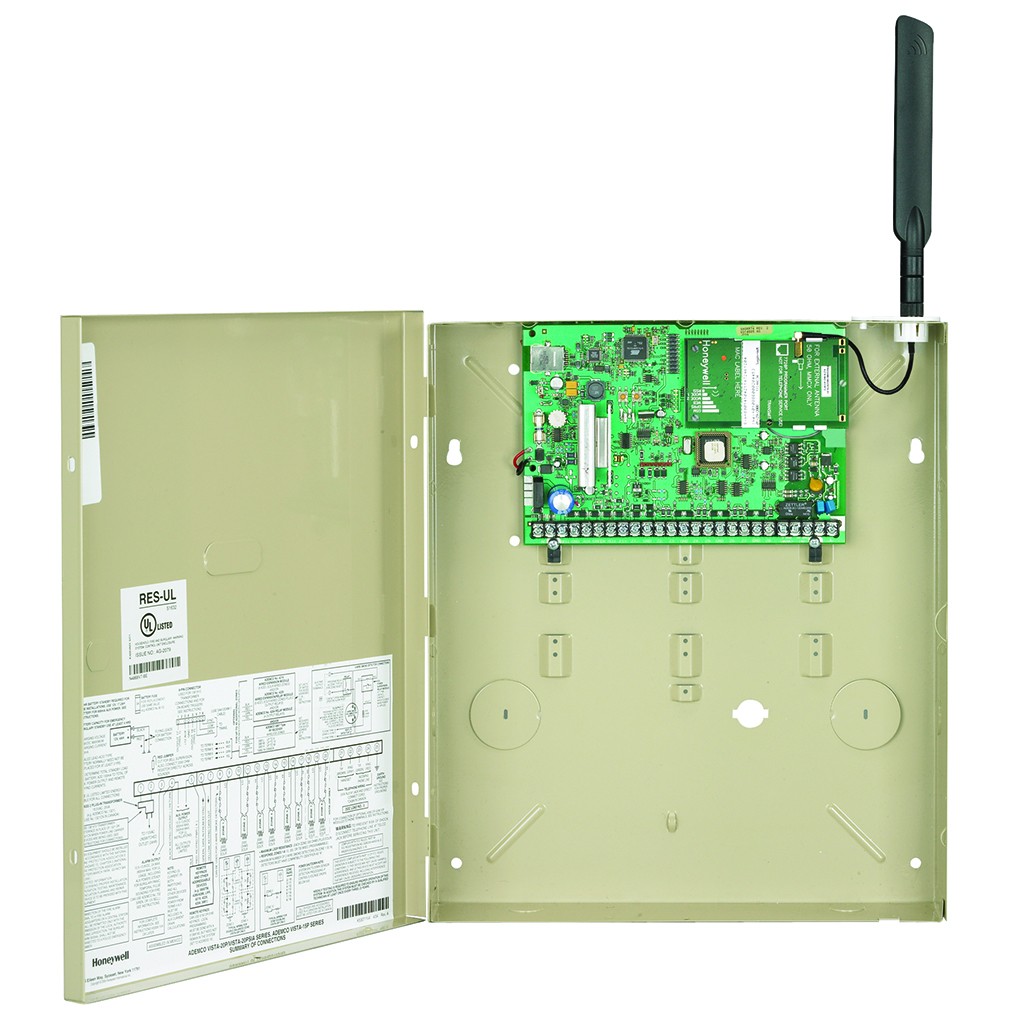

Honeywell VISTA-21iP

High capacity, feature-rich VISTA-21iP provides up to 48 zones of protection, an on-board IP connection, graphic keypad support and dual partitions. The VISTA-21iP gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. When used with an optional AlarmNet® GSM that snaps right on the board, the VISTA-21iP can be installed in premises without TELCO lines – guaranteeing communication independent of any infrastructure. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-21iP an ideal choice for higher-end installations.

Features

  • Internet alarm reporting and uploading/downloading capability via on-board AlarmNet Internet Communicator
  • Supports four graphic touchscreen keypads
  • Wireless keys can be programmed without using zones
  • Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
    – 40 hardwired expansion zones
    – 40 wireless expansion zones
  • Two low current on-board trigger outputs
  • 100 Event Log viewable at system keypads with time/date stamp
  • 48 system user codes assignable to either partition
  • Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
  • Two independent partitions plus a common partition
    – Global arming from any system keypad
    – Goto function to view or operate one partition from the other
    – Separate partition account numbers
  • 16 output devices
    – Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
  • Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
  • Supports four-wire, and up to 16 two-wire smokes
    – Works with Sentrol CleanMe™ maintenance signal
  • Multiple actions on output devices depending on system state
    – Turns lights off when system arms
    – Turns the same light on when system disarms
    – Flashes same lights when system is in alarm
  • Built-in phone line cut monitor with programmable delay and annunciation options
    – Display on system keypads
    – Trigger local sounders
    – Trigger system bell

Valuable End-User Features

  • Viewable on system keypads:
    – Exit countdown
    – Time and date display*
    – Event log*
  • Auto keypad backlighting on entry
  • Keyswitch arming
  • Programmable macro buttons and single-button arming
  • Supports a variety of wireless remote controls for single-button operation
  • User Scheduling
    – Auto arm/disarm
    – “User access” time windows
  • VIP Module allows system control from any touchtone phone
  • Chime by zone

*Requires custom alpha keypad
