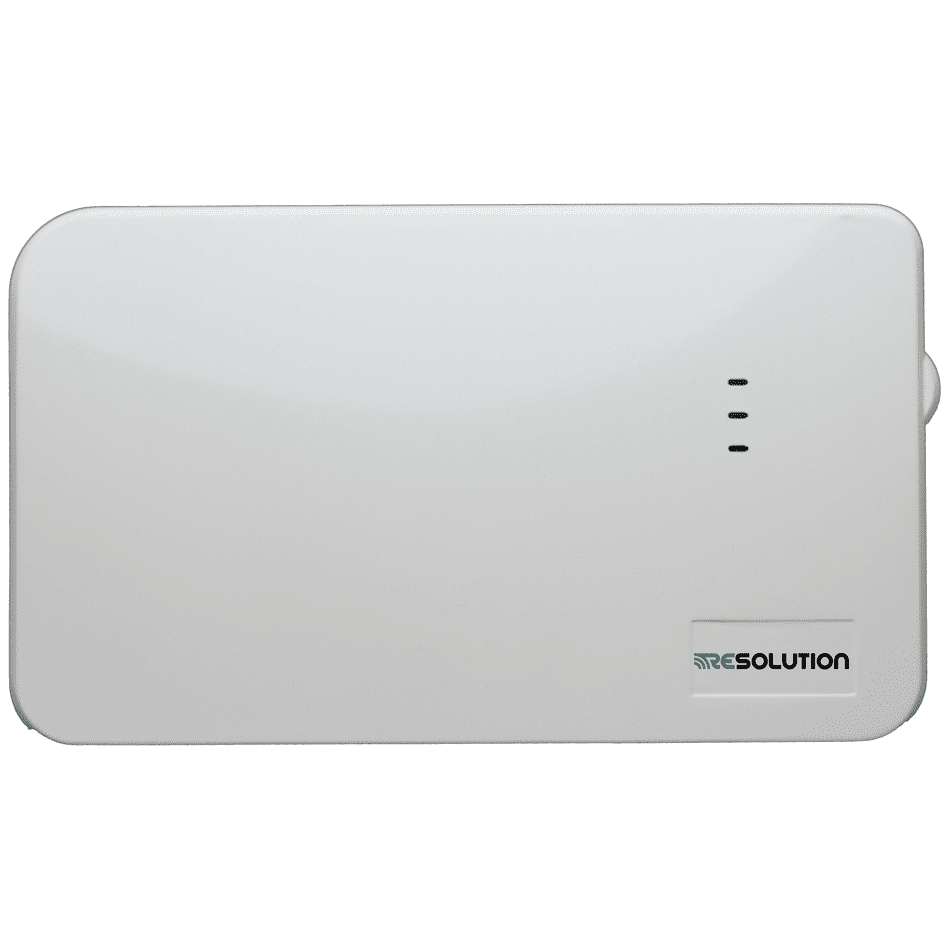

RE620 Sensor Repeater

The RE620 Sensor Repeater is a battery backed up device that extends the wireless range of Connect+ compatible sensors.

Features

  • Extends the range of Connect+ wireless sensors
  • Rechargeable Backup Battery
  • Cover and Wall Tamper
  • 5-Year Warranty

Specifications

Physical

Housing Dimension  8.5 x 1.0 x 1.3 inches (21.6 x 2.5 x 3.3 Cm)
Weight with Battery 16 ounces (454 g)
Mounting Screws #4 or #6 (Not Included)

Environmental

Operating Temperature 32°F to 120°F (0°C to 49°C)
Maximum Humidity  85% non-condensing relative humidity

Power

12VDC Output 10.2VDC to 13VDC, 150mA Max
 Battery Specifications 6VDC 800mAh NiMH
 Transmitted Indications Low Battery, Cover Tamper, Wall Tamper, Supervision

Certification

RE620 FCC, IC Specifications
Specifications subject to change without notice.

Guides

Installation Guide
