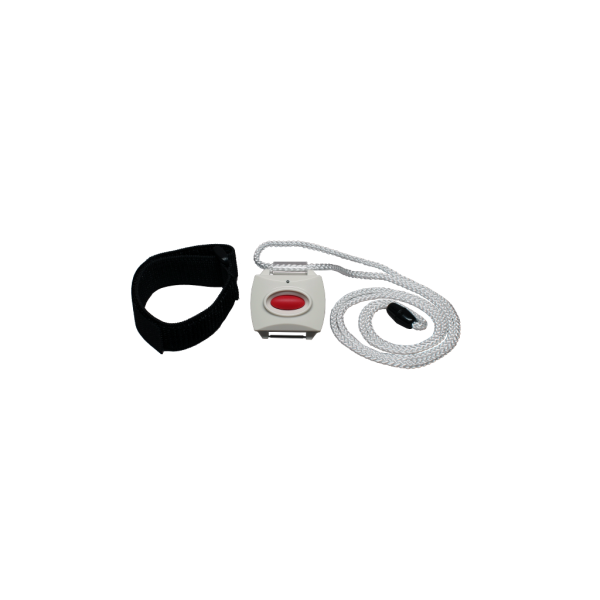

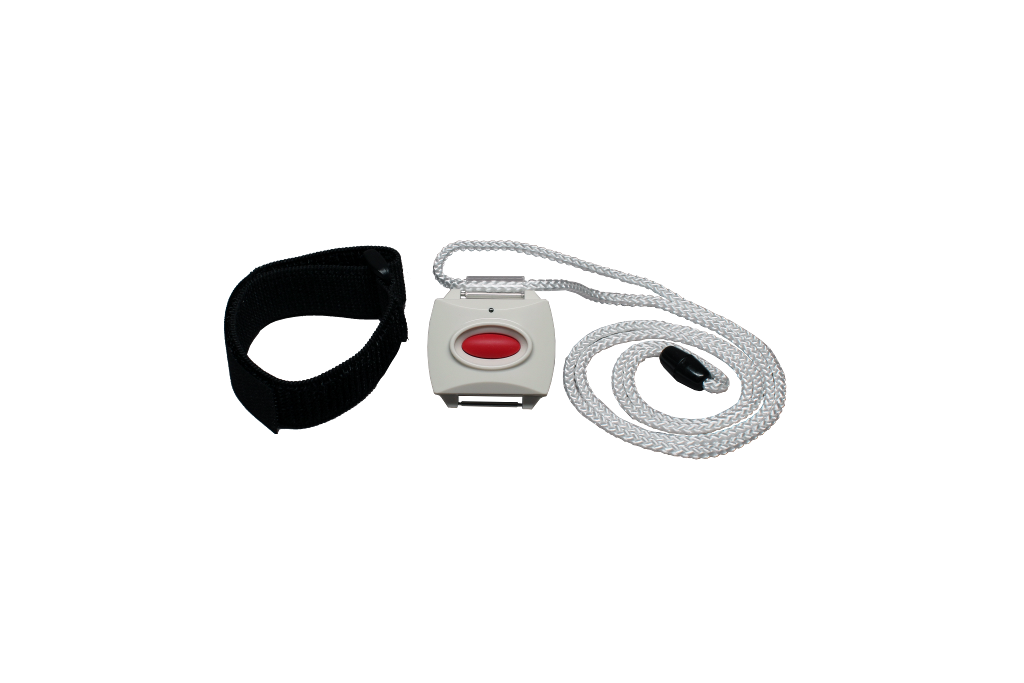

RE603 Panic Pendant

The RE603 Panic Pendant is a supervised portable device used to trigger a panic alarm.

Features

  • Water resistant housing
  •  Low battery indication
  • Secure encrypted wireless transmissions
  • Can be worn with a lanyard or wristband

Specifications

Physical

Housing Dimensions1.5 x 1.2 x .6 inches (3.8 x 3.0 x 1.5 centimeters)
Weight with Battery0.6 ounces (18 grams)

Environmental

Operating Temperature32°F to 120°F (0°C to 49°C)
Maximum Humidity85% non-condensing relative humidity

Sensor Specifications

Frequency433.92 MHz
BatteryOne non-replaceable Panasonic® CR1632
Nominal Battery Life4-6 Years
Transmitted IndicationsLow Battery, Panic, Supervision

Certifications

RE603FCC, IC, RCM, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 2, CE Environmental Class 2

Guides

Installation Guide
